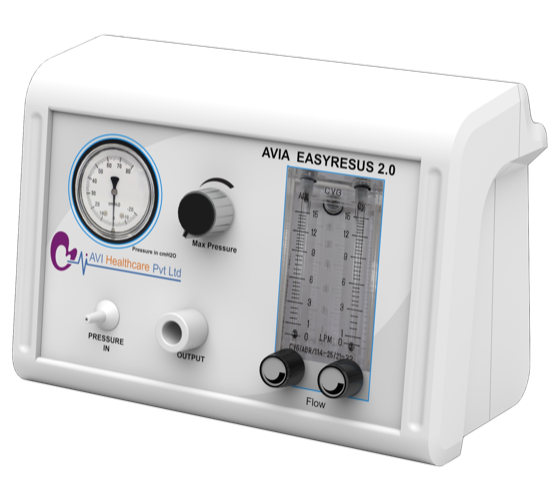

AVIA EasyResus 2.0 Easy Resuscitation unit with T-Piece

Description

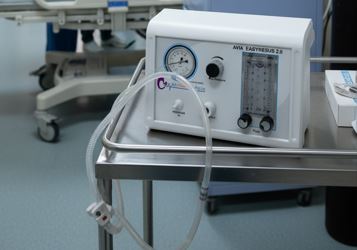

AVI Healthcare’s Easy Resuscitation Unit used to supply invasive/ non-invasive support to hypoxic patient to maintain saturation. It is a light weight, portable and easy to use stand-alone Resuscitator unit. It is suitable for use in Delivery Suite, NICUs, Post Natal Wards, Speciality Care Baby Units, and Operation Theatres providing controlled inflationary pressures. It has an in-line pressure manometer due to which one can vary the airway pressure closer to the patient. Instead of squeezing a bag with no consistency, one can keep a check on the pressure, change the PIP.

Features

T-piece Resuscitation

Air/O2 Mixer

Portable, Light Weight and Robust

T-piece Circuit

Neonatal

Pressure Manometer

Air-Oxygen Mixer 0 - 15lpm Air 0 - 15lpm O2

Portable and Light Weight

PEEP Pressure controlled by Bubble generator knob

Click here to Download Brochure

General Specifications:

Parameter Specification
Model EasyResus 2.0
Operation Pressure Limited, Continuous Flow
Pressure Scale -20 to 80 cmH2O
Air Flow 0 to 15 LPM
Oxygen Flow 0 to 15 LPM
Dimension 300 mm x 205 mm x 165 mm
Weight 2.3 Kg
PEEP/CPAP 0 to 10 cmH2O
Max Pressure 0 to 50 cmH2O
Gas Power 2-4 bar
Ideal Room Temperature 21°C – 26°C
Humidity Range Of Environment 35% to 90%
Storing Temperature 10°C to +50°C
