Neonatology

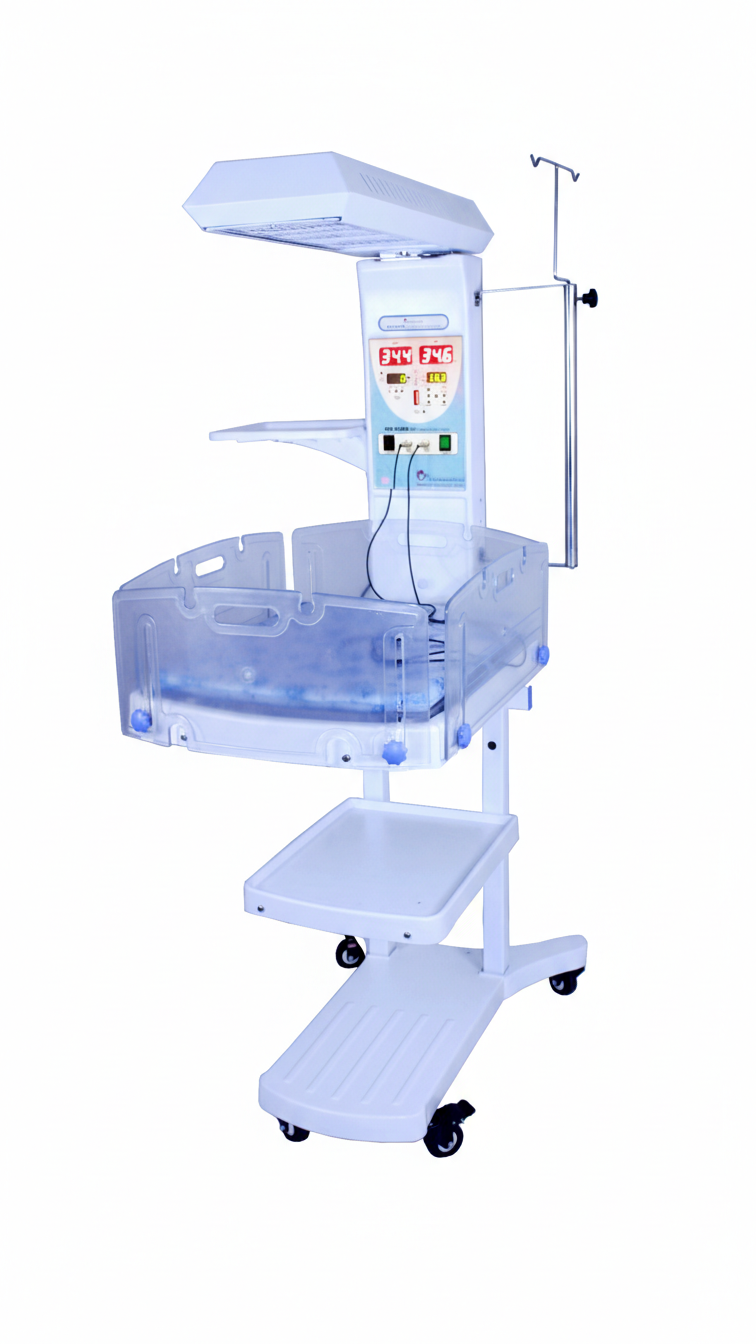

IW5000 Infant Warmer
Description
AVI Healthcare’s Infant Warmer range is specifically designed to provide a controlled source of warmth to Neonates. The Constructive design of the infant warmer is modern yet robust. The control system uses microprocessor technology and provides manual and servo modes of operation.
IW5000 Infant Warmer is Infant Warmer with ABS Plastic Construction and available with Neotherm D10 and Neotherm D20 Temperature Control
Features
Heater Unit
- Heater swivels 90 degree on both the sides
- Inbuilt Observation Lamp
Control Unit
- Neotherm Temperature Controls: D10, D20
- Monitor tray: capacity to hold up to 10 Kg weight
- Infusion Pump Stand
- Adjustable IV Stand
Bassinet
- Oval shaped ABS baby tray
- Unbreakable, Drop-down and Lockable Polycarbonate Side support system
- Strong, lockable, anti-static Castor Wheels
Tested as per EN/IEC safety standards
ABS Plastic Construction
Heater Unit rotates 90 deg. on both sides
LED Observation Lamp
Unbreakable polycarbonate side support
Oval Shaped Bassinet Trolley
Lockable Castor Wheels
Easy Mattress Tilting
Microcontroller based Temperature Control
Large Temperature Display with Battery Backup
Feather touch User Interface
Battery backup of Temperature during Power Fail
Audio visual Alarms including Sensor Fail, Power Fail, Heater Fail, Overheat etc.
Storage Drawers Provided * Optional
LED Phototherapy Unit from above * Optional
Smooth Bed Tilting with X-Ray Tray * Optional

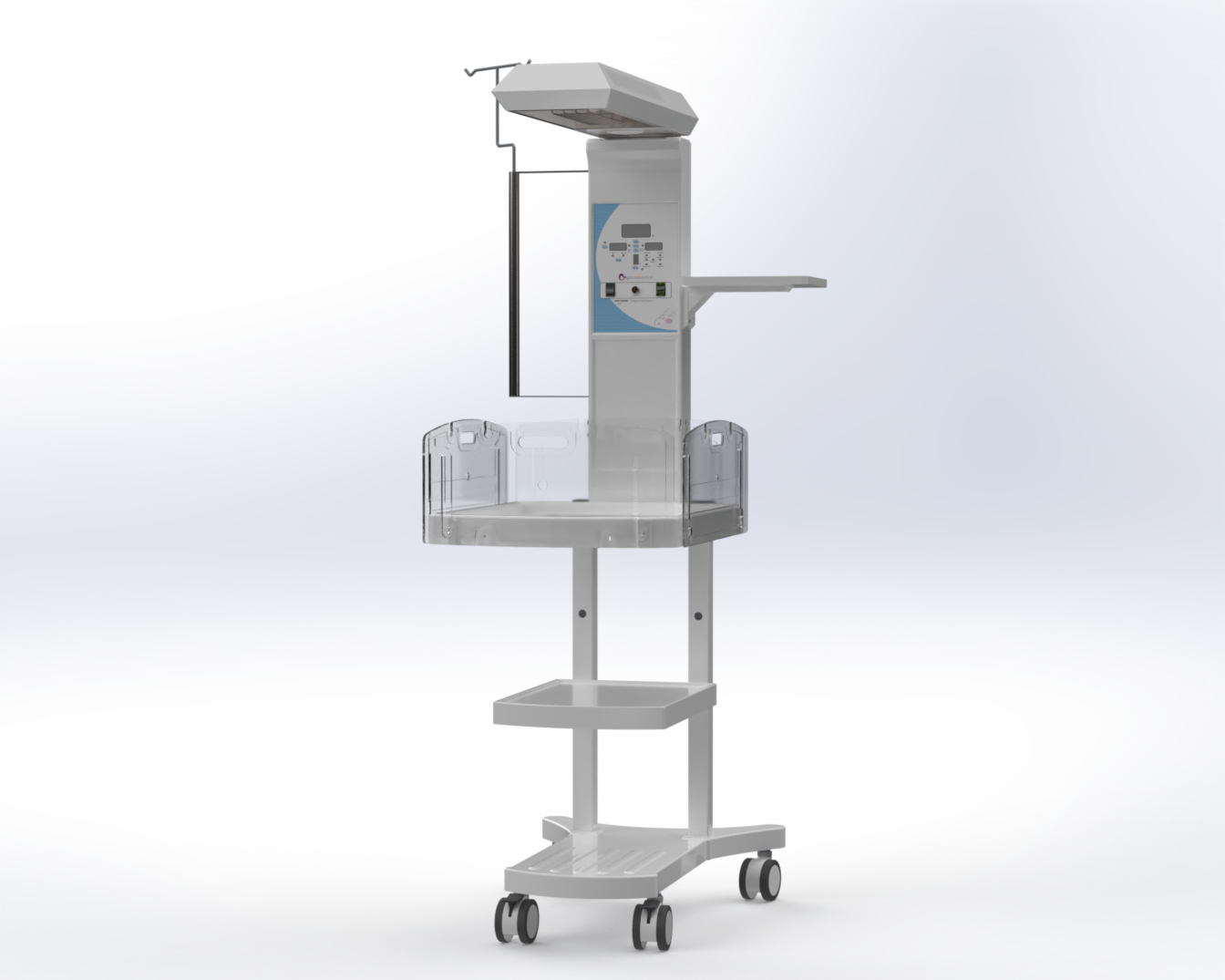

IW5000 with Neotherm D20

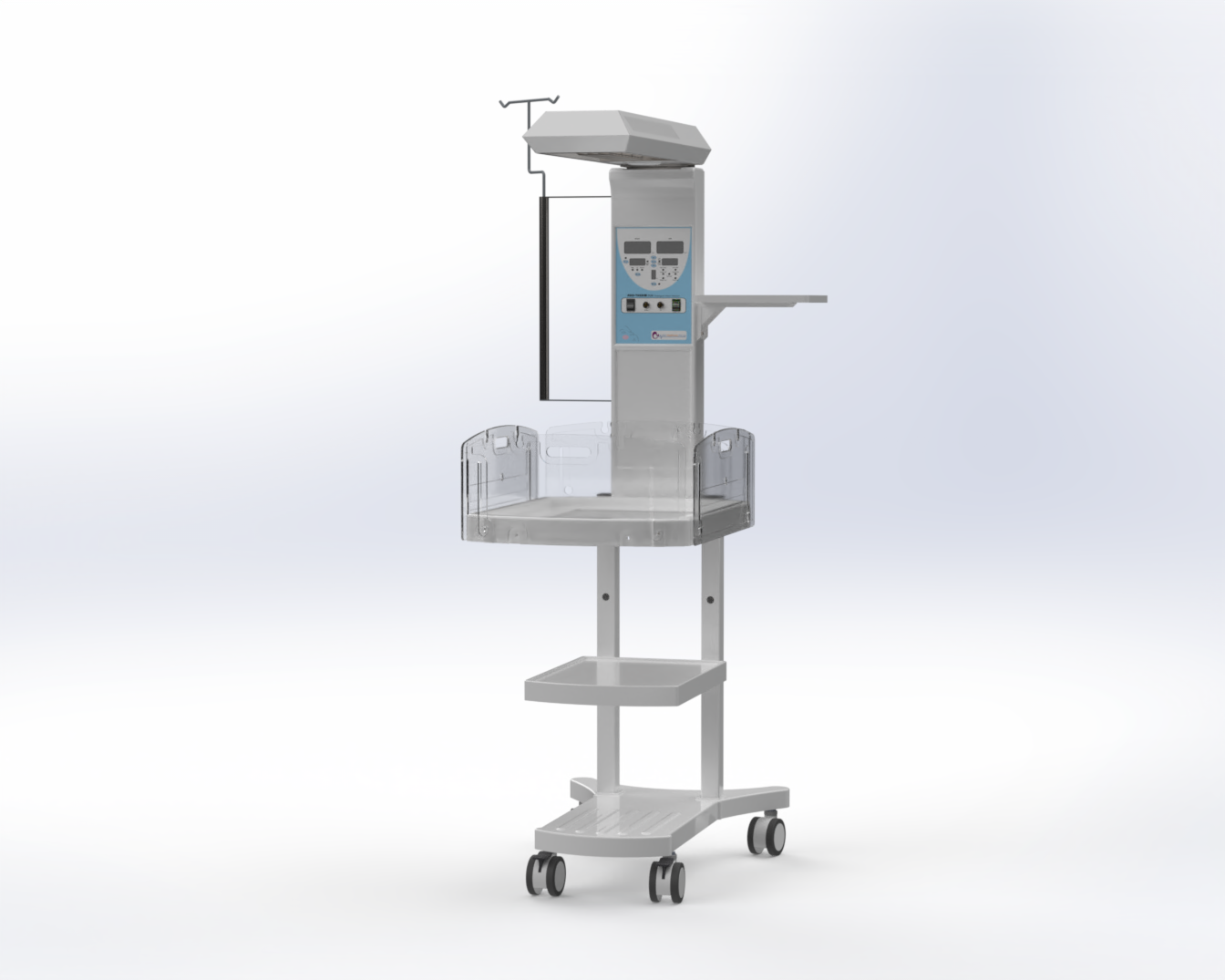

IW5000 with Neotherm D10
Physical and Environmental Specifications
| Parameter | Specification | Unit |
|---|---|---|
| DIMENSIONS AND WEIGHT (BASIC UNIT) | ||
| Length | 109 | mm |
| Depth | 89 | mm |
| Height | 185 | mm |
| Weight | 60 | kg |
| Weight with loading | 80 | kg |
| OPERATION | ||
| Temperature | 10 to 45 | °C |
| Atmospheric Pressure | 70 to 106 | kPa |
| Relative Air Humidity (non-condensing) | 0 to 90 | % |
| STORAGE and TRANSPORT | ||
| Temperature | 10 to 45 | °C |
| Atmospheric Pressure | 70 to 106 | kPa |
| Relative Air Humidity (non-condensing) | 0 to 90 | % |
| OTHER | ||
| Altitude | ≤ 2000 | m |
Electrical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| EXTERNAL POWER SUPPLY AC | ||
| Voltage | 230 | VAC |
| Frequency | 50 | Hz |
| Power Consumption | 850 | Watts |
| Heater Power | 650 | Watts |
General Specifications
| Parameter | Specification |
|---|---|
| Temperature Control | Computerised Software based PID Servo Control System. PID is the most advanced servo control system which considers even smallest change in temperature. |
| Fuse Rating | 6.3A, 250V |
| Display | Large Temperature Display in Celsius as well as Fahrenheit |
| Monitor Tray Capacity | Up to 10 Kg |
| Accessory Rail Capacity | Up to 10 Kg |
| Storage Drawers Capacity – Optional | Up to 3 kg |
| Temperature Display | 10°C – 50°C |
| Set Temperature Range | Baby mode: 30°C – 38°C in 0.1°C increment Air mode: 30°C – 38°C in 0.1°C increment |
| Resolution | 0.1°C |
| Accuracy | ±0.2°C |
| Probe Interchangeability | ±0.2°C |
| Overheat Temperature | 38°C (BABY) and 39°C(AIR) |
| Alarms | High Skin Temp, Low Skin Temp, Sensor Failure, Heater Failure, Power Failure, Overheat |
| Modes | Baby, Air, Manual |
| Heater Output Range | 0 – 100% in steps of 1% |
| Programmable Timer | UP Timer can be used for Apgar, Nurse Feed time, etc. DOWN Timer can be used as stopwatch (Optional) |
| Observation Lamp | LED Lamp |
| Mattress | 700mm x 500mm x 40mm, Foam Density of approx. 21-25 kg/M³. Mattress Cover removable with zipper, waterproof, washable, resistant to cleaning with chlorine based solutions and flame retardant. |
| Heater | Ceramic Heater with parabolic reflector |
IW5000 Infant Warmer (can be configured with 2 temperature controls – D10, D20)
Following optional modules can be incorporated:
- Inbuilt LED Phototherapy unit from above
