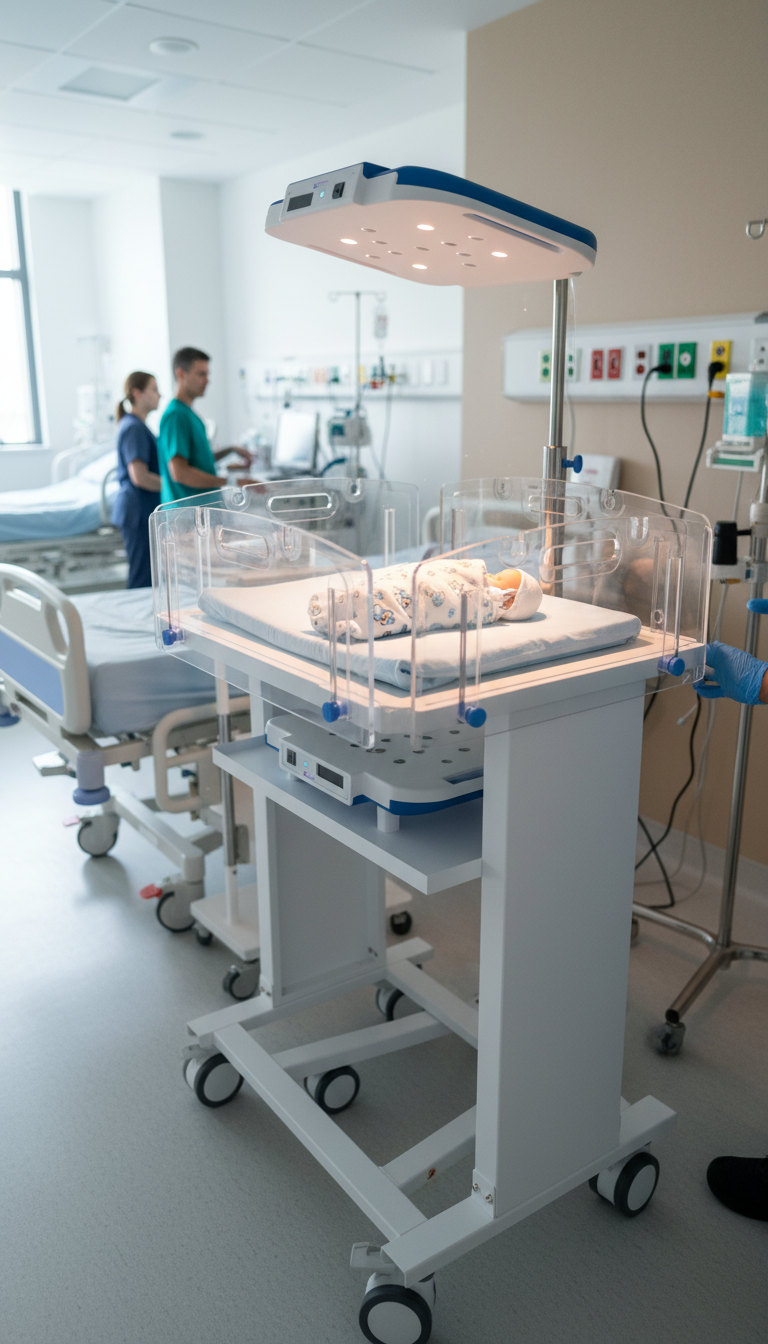

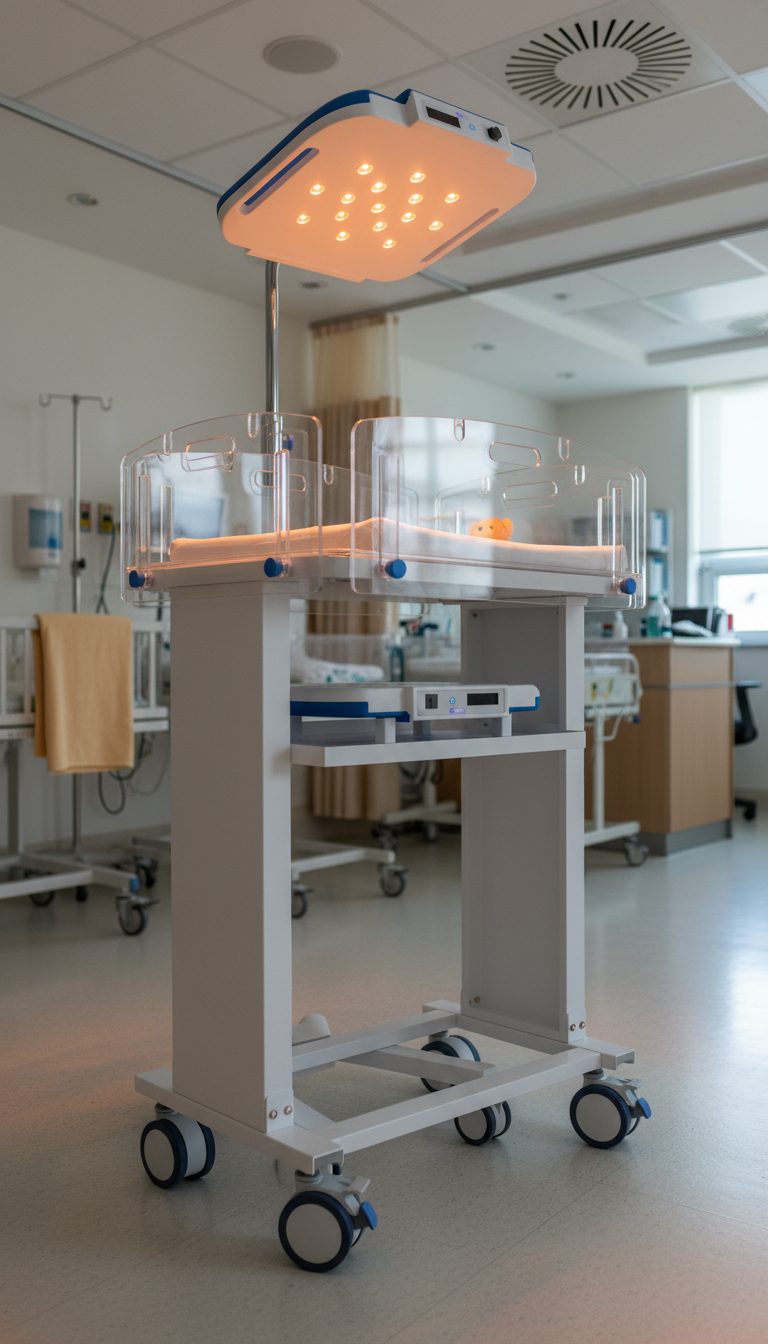

Bilipod LED Phototherapy Unit
Description
Bilipod LED Phototherapy units has been developed for the special purpose of lowering the serum bilirubin level of new born children by photochemical reactions. It is widely used in curing Neonatal Jaundice or Hyperbilirubinemia.
Features
Modern and Sleek Design
- It is designed to occupy minimal
space without compromising the
comfort & treatment efficacy
Light Weight, Portable and Compact
Light Weight
Lamp Unit weighs not more than 3 Kg. Easily removable from trolley to use over Incubator or under surface phototherapy
Portable
Easily Removable to be placed above incubator or below the Warmer Baby tray to give under surface Phototherapy
Compact
Takes minimum space and the lamp unit is very sleek
Uniform Light Distribution
- 11 High Intensity LED Lamps
- 2 White Observation lamps
Easy Installation & Low Maintenance
Zero Noise Cooling Fan
High Irradiance
Sturdy Bassinet Trolley
Tested as per latest EN/IEC Standards
European CE Certified
Optimal Wavelength of 460nm
High Irradiance
Low Power Consumption only 25 watts
ABS Plastic Contruction
No Infrared Radiation
No Ultraviolet Radiation
Life of LEDs: 50,000 hrs
Lamp unit tilt up to 90°
Height adjustable up to 50cm
Two Observation Lamp
LCD based timer Patient and Total usage
Fast LED Colling with Noiseless Fan
Physical and Environmental Specifications
| Parameter | Specification | Unit |
|---|---|---|
| DIMENSIONS AND WEIGHT (LIGHT SOURCE UNIT) | ||
| Length | 450 | mm |
| Depth | 50 | mm |
| Height | 300 | mm |
| Light source unit Weight | < 3 | kg |
| Weight of basic unit | 13 | kg |
| OPERATION | ||
| Temperature | 10 to 35 | °C |
| Atmospheric Pressure | 70 to 106 | kPa |
| Relative Air Humidity (non-condensing) | 0 to 95 | % |
| STORAGE and TRANSPORT | ||
| Temperature | 10 to 50 | °C |
| Atmospheric Pressure | 50 to 106 | kPa |
| Relative Air Humidity (non-condensing) | 0 to 95 | % |
| OTHER | ||
| Altitude | ≤ 2000 | m |
| Noise | ≤ 35 | dB |
| Light source unit tilt | Up to 90 | Degree |
| Height Adjustable | 50 | cm |
| Wavelength range | 420 – 480 | Nanometer |
| Optimum Wavelength | 460 | Nanometer |
| Lamp Life | 50000 | Hours |
Electrical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| EXTERNAL POWER SUPPLY AC | ||
| Voltage | 200-250 | VAC |
| Frequency | 50-60 | Hz |
| Power Consumption | 25 | Watts |
General Specifications
| Fuse Rating | 3A, 250V |
| Display | LCD based Timer |
| Irradiance | > 30 µW/cm2 at 45cm distance |
| Observation Lamp | 2 white LEDs |
| Mobility | Lockable Castor Wheels |
- Bilipod LED Phototherapy unit
- BILIPAD LED Phototherapy unit
- Bilipod LED Double Surface Phototherapy unit
- Bilipod LED Portable Double Surface Phototherapy unit
- Bilipod LED 360 Intensive Phototherapy
Bilipod LED Phototherapy Unit (can be configured with following options)
Order Code:
- Bilipod LED Phototherapy unit from above
- Bilipod LED Double Surface Phototherapy unit
- Bilipod LED Double Surface with Detachable Trolley
- Bilipod LED Phototherapy Unit from Below
- Bilipod LED Phototherapy Unit with Baby tray
