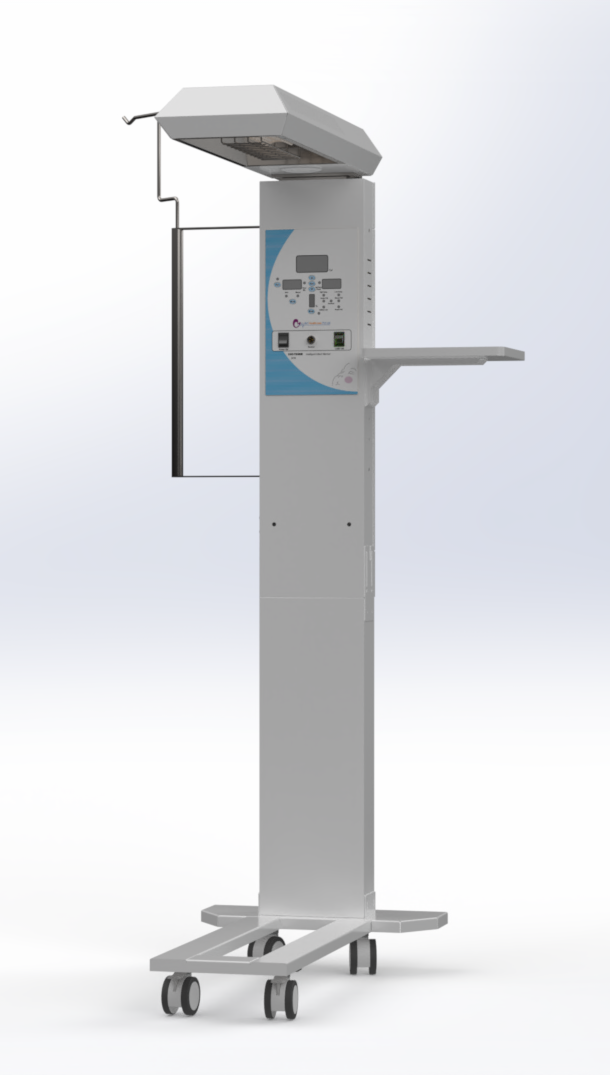

IW4000S Infant Warmer
Description
AVI Healthcare’s Infant Warmer range is specifically designed to provide a controlled source of warmth to Neonates. The Constructive design of the infant warmer is modern yet robust. The control system uses microprocessor technology and provides manual and servo modes of operation.
IW4000 Infant Warmer is Infant Warmer with MS Construction and available with Neotherm D10 and Neotherm D20 Temperature Control
Features
Heater Unit
- Heater swivels 90 degree on both the sides
- Inbuilt Observation Lamp
Control Unit
- Neotherm Temperature Controls: D10, D20
- Monitor tray: capacity to hold up to 10 Kg weight
- Infusion Pump Stand
- Adjustable IV Stand
MS Construction
Heater Unit rotates 90 deg. on both sides
LED Observation Lamp
Lockable Castor Wheels
Microcontroller based Temperature Control
Large Temperature Display with Battery Backup
Feather touch User Interface
Battery backup of Temperature during Power Fail
Audio visual Alarms including Sensor Fail, Power Fail, Heater Fail, etc.
Height Adjustable
IW4000 with Neotherm D20
IW4000 with Neotherm D10
Physical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| DIMENSIONS AND WEIGHT (BASIC UNIT) | ||
| Length | 109 | mm |
| Depth | 89 | mm |
| Height | 185 | mm |
| Weight | 50 | kg |
| Weight with loading | 70 | kg |
Electrical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| EXTERNAL POWER SUPPLY AC | ||
| Voltage | 230 | VAC |
| Frequency | 50 | Hz |
| Power Consumption | 850 | Watts |
| Heater Power | 650 | Watts |
General Specifications
| Parameter | Specifications |
|---|---|
| Temperature Control | Computerised Software based PID Servo Control System. PID is the most advanced servo control system which considers even smallest change in temperature. |
| Fuse Rating | 6.3A, 250V |
| Display | Large Temperature Display in Celsius as well as Fahrenheit |
| Monitor Tray Capacity | Up to 10 Kg |
| Accessory Rail Capacity | Up to 10 Kg |
| Temperature Display | 10°C – 50°C |
| Set Temperature Range | Baby mode: 30°C – 38°C in 0.1°C increment Air mode: 30°C – 38°C in 0.1°C increment |
| Resolution | 0.1°C |
| Accuracy | ±0.2°C |
| Probe Interchangeability | ±0.2°C |
| Overheat Temperature | 38°C (BABY) and 39°C(AIR) |
| Alarms | High Skin Temp, Low Skin Temp, Sensor Failure, Heater Failure, Power Failure, Overheat |
| Modes | Baby, Air, Manual |
| Heater Output Range | 0 – 100% in steps of 1% |
| Programmable Timer | UP Timer can be used for Apgar, Nurse Feed time, etc. DOWN Timer can be used as stopwatch (Optional) |
| Observation Lamp | LED Lamp |
| Heater | Ceramic Heater with parabolic reflector |
IW4000 Infant Warmer (can be configured with 2 temperature controls – D10, D20)
