Neonatology

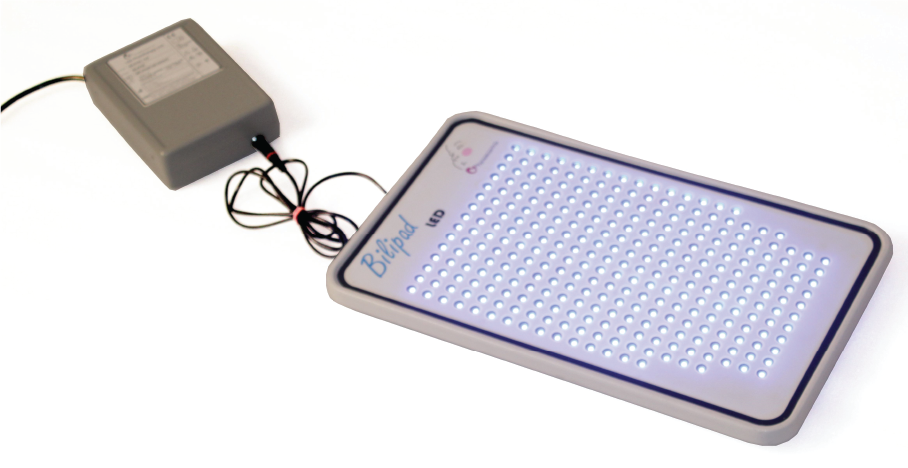

BILIPAD LED Phototherapy Unit
Description
BILIPAD LED Phototherapy units has been developed for the special purpose of lowering the serum bilirubin level of new born children by photochemical reactions. It is widely used in curing Neonatal Jaundice or Hyperbilirubinemia.
Features
Winner of Crisil Healthcare Innovation Award 2012
Portable and Light Weight
- It is designed to occupy minimal
space without compromising the
comfort & treatment efficacy - Bilipad can be carried anywhere, Neonatal ICU, Baby Nursery, or at home.
Mother-Baby bonding
There is no barrier between Mother and Baby during phototherapy. Mother can feed, hold or even rock throughout the therapy session
Surface Area Coverage
- More skin Surface area covered than traditional overhead lamps
Easy Installation & Maintenance Free
- No movable parts, trolley or light boxes with lamps. Hence Bilipad is Maintenance free.
Quiet operation
- Bilipad has zero noise operation giving a quiet environment in NICU
ABS Plastic Contruction
Optimal Wavelength of 460nm
High Irradiance
No Infrared Radiation
No Ultraviolet Radiation
Mother-Baby bonding (No barrier during phototherapy)
Low Power Consumption only 30 watts
Life of LEDs: 20,000 hrs
Portable, Light weight, Space Conserve
Maintenance Free, Can be easily cleaned
Quiet Operation, Shock Proof
Easy Installation
Physical and Environmental Specifications
| Parameter | Specification | Unit |
|---|---|---|
| DIMENSIONS AND WEIGHT | ||
| Unit Size | 45 x 26 x 2.5 | cm |
| Weight | 1.5 | Kg |
| Weight with loading | 5 | Kg |
| OTHER | ||
| Lamp Life | 20000 | hours |
| Irradiance | > 30 | µW/cm2 |
| Wavelength | 420 – 480 | nanometers |
| Optimum Wavelength | 460 | nanometers |
Electrical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| EXTERNAL POWER SUPPLY AC | ||
| Voltage | 200 to 250 | VAC |
| Frequency | 50 | Hz |
| Power Consumption | 30 | Watts |
