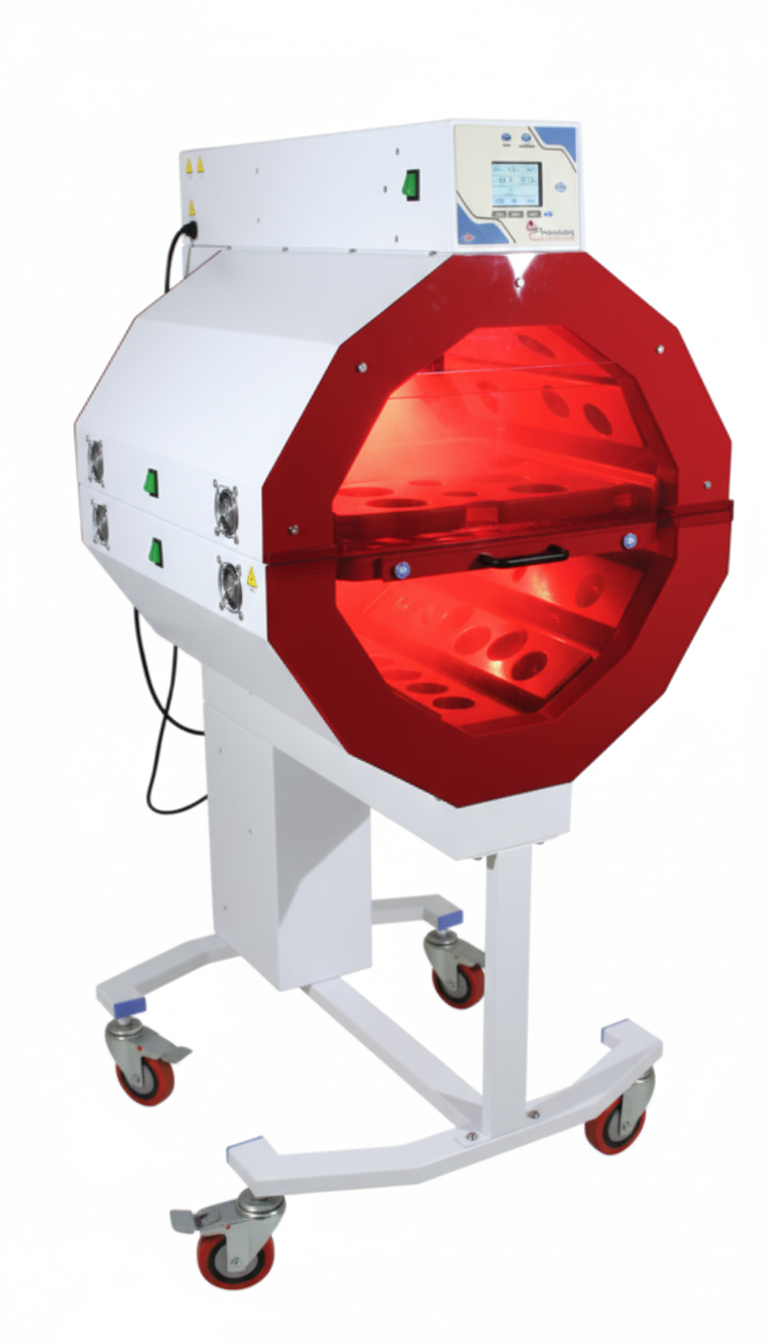

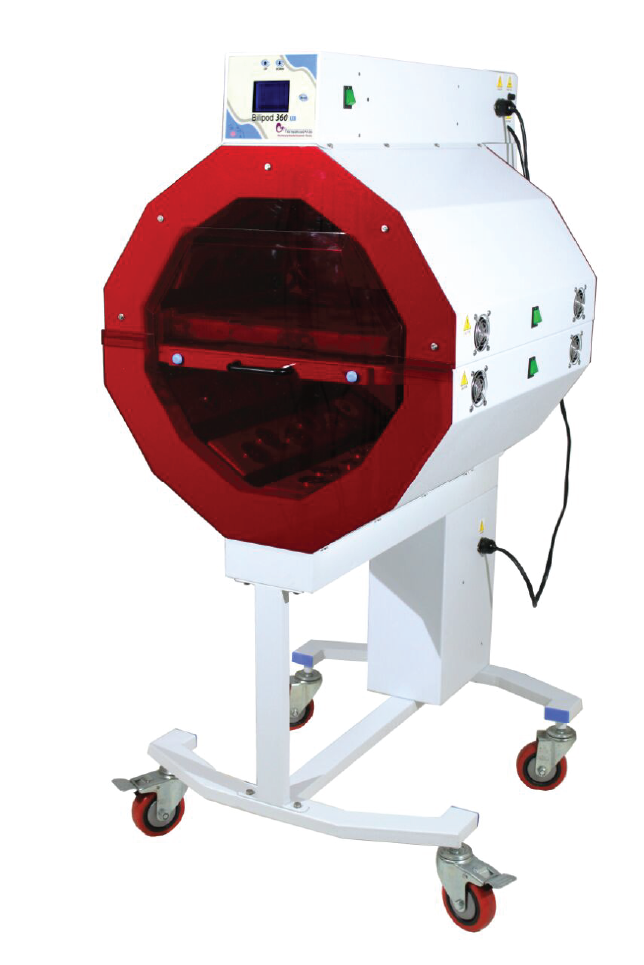

Bilipod LED 360 Phototherapy Unit
Description
Bilipod LED Phototherapy units has been developed for the special purpose of lowering the serum bilirubin level of new born children by photochemical reactions. It is widely used in curing Neonatal Jaundice or Hyperbilirubinemia. BILIPOD 360 offers a new MULTIDIRECTIONAL INTENSIVE PHOTOTHERAPY which brings new standards and benefits for newborns.
Features
Ergonomic Design
Multi-direction Light Distribution
Reduction in Treatment Time
High Irradiance Levels allow faster Bilirubin breakdown
Complete exposure to light with Intensive Phototherapy care
Stable environment maintained along with temperature regulation with integrated fan cooling system
Electrical Elevation of Upper couple upto 25 cm
Slide out tray for Easy access of the baby
360 degree Multi-directional Uniform Light Distribution
High Irradiance >60 µW/cm2
Optimal Wavelength of 460nm
Graphic LCD Display
No Infrared Radiation
No Ultraviolet Radiation
Life of LEDs: 30,000 hrs
Fast LED Colling with Noiseless Fan
General Specifications
| Parameter | Specification |
|---|---|
| MODEL | 360 INTENSIVE CARE |
| VOLTAGE RATING | 190 – 240VAC, 50Hz |
| POWER CONSUMPTION | 200 W |
| DISPLAY | GRAPHIC LCD USER DISPLAY |
| WAVELENGTH | 450 – 480 nanometers |
| OPTIMUM WAVELENGTH | 460 nanometers |
| HEIGHT | ADJUSTABLE UP TO 25 cm |
| WEIGHT | 50 Kg |
| WEIGHT WITH LOADING | 70 Kg |
| IRRADIANCE | >60µW/cm2/nm |
| DIMENSION | 70 x 76 x 165 cm |
| PROGRAMMABLE TIMER | LCD BASED TIMER |
| LAMP LIFE | 30,000 Hour |
| MOBILITY | Caster Wheels With Sturdy Wheel Base |
